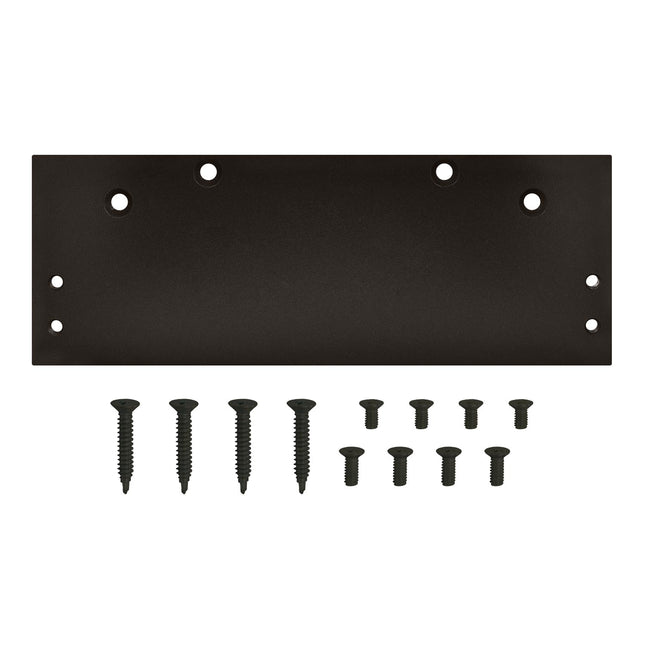

DESIGN - This drop plate design is specifically compatible with the Nuk3y 4000 series door closer. MOUNT - Mounting plate options include configurations for Parallel or Regular arm mounts. CLEARANCE - Ensure a sturdy mounting surface for the closer body in situations where space is restricted, such as narrow top door frames or doors with glass panels. SIZE - The Parallel Arm Drop Plate measures 5-1/8 inches tall. The Regular Arm Mount measure at 3-9/16 inches tall. Both plate require 2 inch minimum top rail clearance. FINISH - Available in Aluminum, Black, and Duronotic (duro) . EASY TO INSTALL - with included wood and machine screws.

Read more less

DESIGN - This drop plate design is specifically compatible with the Nuk3y 9000 series door closer. MOUNT - Mounting plate options include configurations for Parallel or Regular/Top Jamb arm mounts. CLEARANCE - Ensure a sturdy mounting surface for the closer body in situations where space is restricted, such as narrow top door frames or doors with glass panels. SIZE - The Parallel Arm Drop Plate measures 3-1/2 inches tall. The Regular/Top Jam Arm Mount measure at 2-9/16 inches tall. FINISH - Available in Aluminum, Black, Duronotic (duro) , and White finish. EASY TO INSTALL - with included wood and machine screws.

Read more less

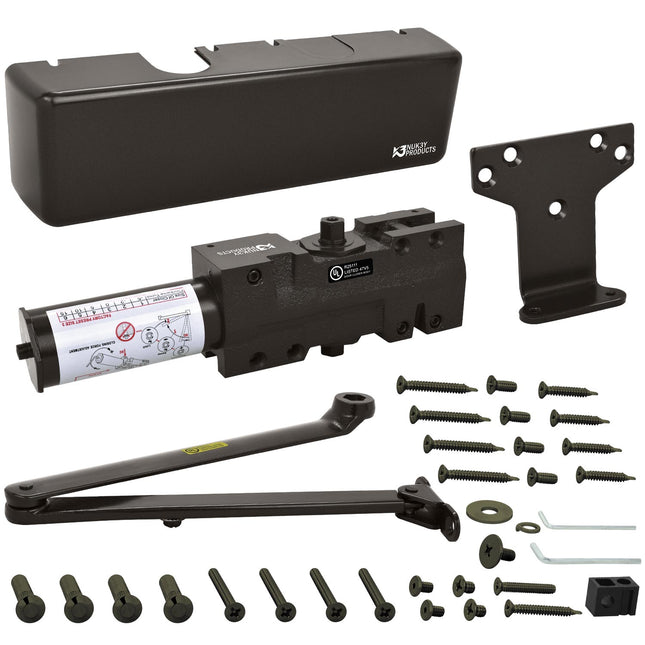

CAST IRON - ANSI/BHMA Certified A156.4 Grade 1 tested over 2 million cycles. CLOSER Body Mounting Hole Template Match LCN 4040 / 4010 ADJUSTABLE - Fully adjustable power spring Size 1-6 to fit all type of door weight. Adjustable Sweep (Closing), Latching, and Backcheck to suit your needs. ADA & UL/CUL LISTED - Meet ADA 5LBS opening force and UL10C for 3 hours fire rating HARDWARE - Self Tapping Screws, Machine Screw, Thru Nuts, Full Plastic Cover, Tri-Pack Multi-Mount ( Parallel, Regular, and Top Jamb arm) for arm installation. EASY TO INSTALL - Installation instruction with detailed template included. Comparable to LCN 4040 / 4010

Read more less

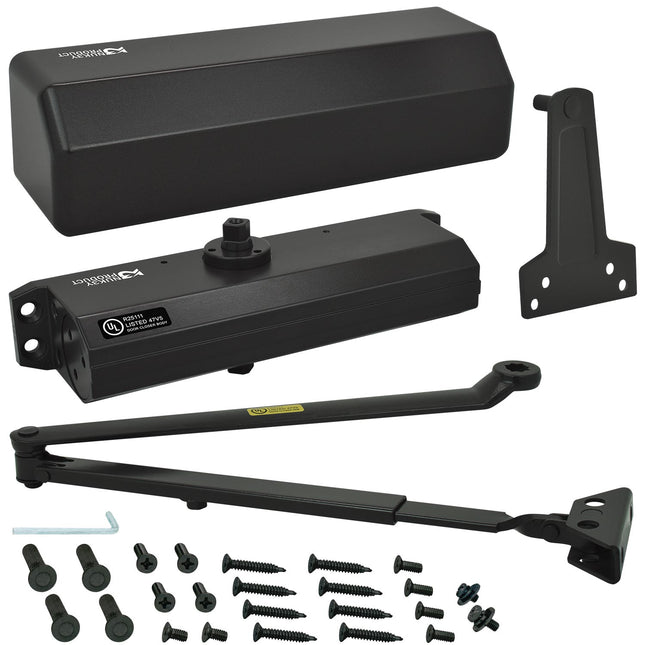

HEAVY DUTY - ANSI/BHMA Certified A156.4 Grade 1 tested over 2 million cycles. ADJUSTABLE - Fully adjustable power spring Size 1-6 to fit all type of door weight. Adjustable Sweep (Closing), Latching, and Backcheck to suit your needs. ADA & UL/CUL LISTED - Meet ADA 5LBS opening force and UL10C for 3 hours fire rating HARDWARE - Self Tapping Screws, Machine Screw, Sex Thru Nuts, Full Plastic Cover, Tri-Pack Multi-Mount ( Parallel, Regular, and Top Jamb arm) for arm installation. EASY TO INSTALL - Installation instruction with detailed template included. Comparable to Norton 1600 Series (ASSA ABLOY)

Read more less
